Kormee NΑNODRILL 3004 met hogedrukpomp 10240291 pakket3

Price

Contact us for price

Location

Rhenen, Netherlands

orCall +31-317-745974

Description

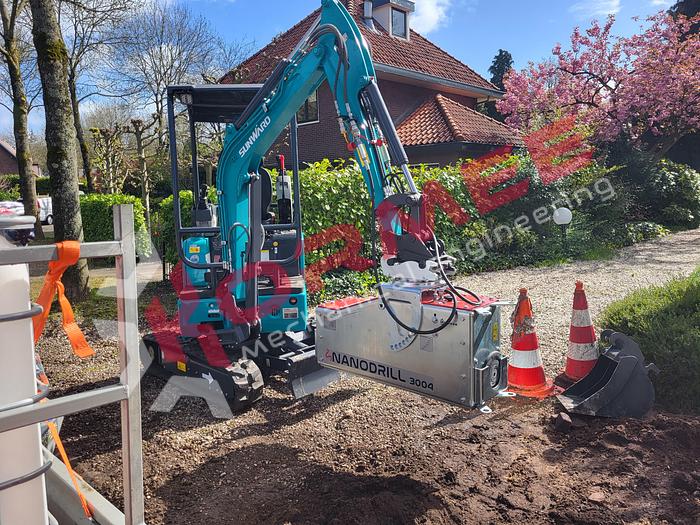

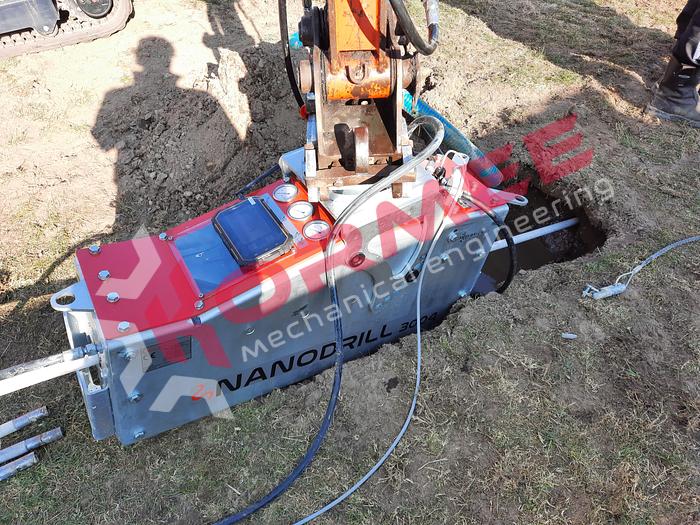

Unique in the Netherlands, the Nanodrill 3004 is the ultra-compact controlled drilling solution at nano level. Can be applied to the mini digger and easy to transport with a van or trailer. The Nanodrill is the little brother of the Microdrill. With this installation a mini digger (from 1.5 tons) can also perform directional drilling. Now even more compact and easier to transport. The entry angle is adjustable with a hole pattern and is rotatable on the excavator's quick coupler. The drill rods are very flexible so that can be drilled with a bending radius of 2 meters. The Nanodrill is a valuable addition for the installation of cables and pipes. House connections or passages of streets and entrances are drilled in no time. The Nanodrill makes a directional drilling so that it works much more accurately than a rocket drills. As a result, the chance of damage from the bore is very small. By equipping a cable crew with a Nanodrill, work is done more efficiently. Obstacles can be overcome with a directional drilling are avoided so that there is no stagnation of the work. In addition, there is no expensive drilling needed of a large drilling rig. By avoiding rocket drills, the chance of damage is very small. Optional: * Radio remote control * Delivery including bentonite mix pump installation.

Specifications

ManufacturerKormee
ModelNΑNODRILL 3004 met MIPO1005 pakket-3 10240291
Year2025
Stock Number100721
Dimensions0.3 x 1.3 x 0.5 meters
Weight275 kgs
Bending radius drill rod2 meters
Hydraulic power30 l/min
Power12 kW
Max. couple300 Nm
Push and pull force400 kg
Max. rpm200 rpm
Max. length30 meters
Max. diameter90 mm
